use

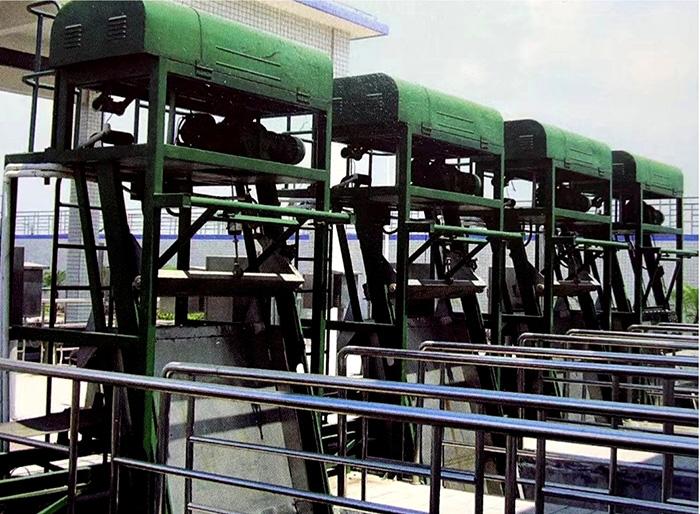

Cable type wire rope grid decontarination machine (referred to as wire rope grid decontarination machine), it is suitable for large and medium-sized water works, rain/sewage pumping station water treatment plant and power plant inlet, intercept and remove the coarse floating objects and bottom sediments in the water, protect the pump impeller, reduce the processing load of subsequent process equipment.
Structure and working principle
The frame of the equipment is fixed on the upper end of the wellhead and composed of fixed grid bars through the water grid surface. When sewage flows through the grid surface, debris larger than the grid gap is intercepted: Scraper first completed by rake motor driver, open action after stop, again by lifting motor drive, and under the control of height limiter, on both sides along the guide rail down to stop after grille at the bottom of the well, and once again open automatically rake machine, complete close rake action after stop, elevator motors can be started again, scraper under the wire rope traction, inserted into the gate clearance, will intercept the sundry salvage, And along the grid surface, slag plate rise, under the control of the height limiter, after arriving at the unloading port position, the lifting motor stops, the cleaning scraper at the rack with the scraper scraper rising action will automatically scrape debris, from the unloading mouth into the conveyor or garbage car, a cleaning process is completed.
